cli.c File Reference

Detailed Description

Example command line interface (CLI) over UART.

Note

It is assumed that you have followed the steps in the Getting Started guide and are therefore familiar with how to build, flash, and monitor an application using the MM-IoT-SDK framework.

Definition in file cli.c.

#include "mmconfig.h"
#include "mmhal_uart.h"
#include "mmutils.h"
#include "mmagic.h"
#include "mm_app_regdb.h"
#include "mbedtls/mbedtls_config.h"

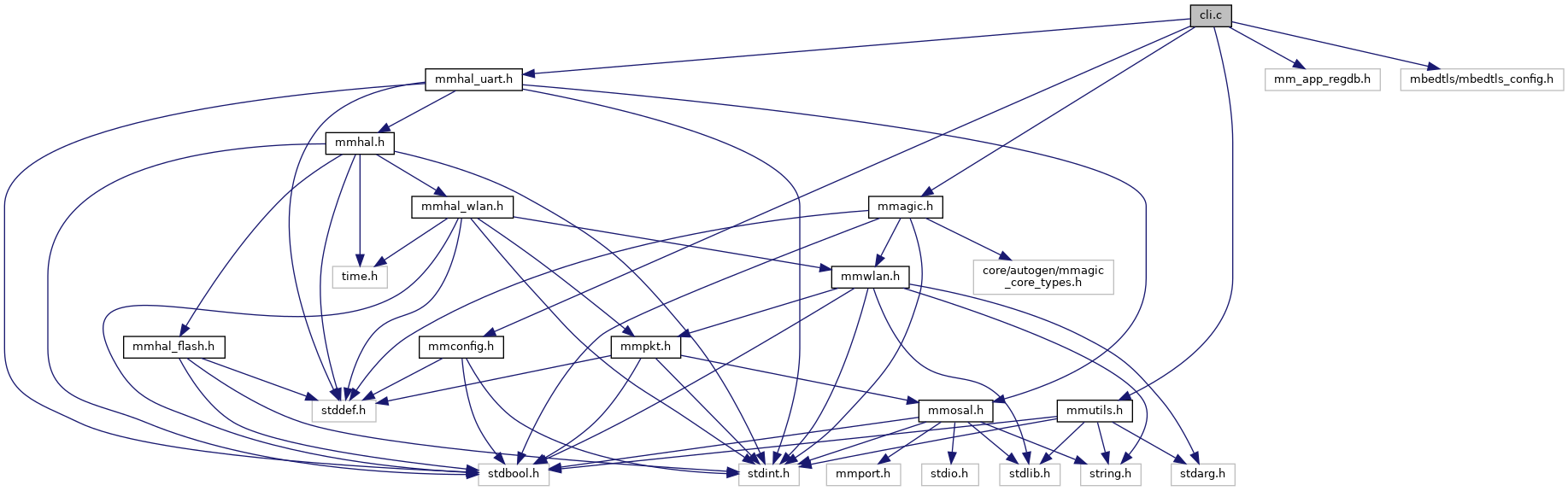

Include dependency graph for cli.c:

Go to the source code of this file.

Functions
void	cli_uart_rx_handler (const uint8_t *data, size_t length, void *arg)
	Handler for the UART receive callback. More...
void	cli_tx_handler (const char *data, size_t length, void *arg)
	Handler for the CLI transmit callback. More...
bool	cli_set_deep_sleep_mode_handler (enum mmagic_deep_sleep_mode mode, void *arg)
	Handler for the CLI set deep sleep mode callback. More...
void	app_init (void)
	Main entry point to the application. More...

Variables
struct mmagic_cli *	mmagic_cli_ctx
	Pointer to context for CLI receive callback. More...

Function Documentation

app_init()

void app_init

(

void

)

Main entry point to the application.

This will be invoked in a thread once operating system and hardware initialization has completed. It may return, but it does not have to.

Definition at line 107 of file cli.c.

cli_set_deep_sleep_mode_handler()

bool cli_set_deep_sleep_mode_handler	(	enum mmagic_deep_sleep_mode	mode,
		void *	arg
	)

Handler for the CLI set deep sleep mode callback.

Parameters

mode	The deep sleep mode to set.
arg	Opaque argument (unused).

Returns

true on success, false on failure.

Definition at line 78 of file cli.c.

cli_tx_handler()

void cli_tx_handler	(	const char *	data,
		size_t	length,
		void *	arg
	)

Handler for the CLI transmit callback.

Parameters

data	Data to transmit.
length	Length of data to transmit.
arg	Opaque argument (unused).

Definition at line 64 of file cli.c.

cli_uart_rx_handler()

void cli_uart_rx_handler	(	const uint8_t *	data,
		size_t	length,
		void *	arg
	)

Handler for the UART receive callback.

Parameters

data	Received data.
length	Length of received data.
arg	Opaque argument (unused).

Definition at line 47 of file cli.c.

Variable Documentation

mmagic_cli_ctx

struct mmagic_cli* mmagic_cli_ctx

Pointer to context for CLI receive callback.

Definition at line 38 of file cli.c.
