rf-test.c File Reference

Detailed Description

RF test application, alpha release.

Note

It is assumed that you have followed the steps in the Getting Started guide and are therefore familiar with how to build, flash, and monitor an application using the MM-IoT-SDK framework.

This application is not intended for general use and requires additional tools. Please contact Morse support for more information.

Definition in file rf-test.c.

#include <endian.h>
#include <string.h>
#include "mmbuf.h"
#include "mmcrc.h"
#include "mmhal.h"
#include "mmhal_uart.h"
#include "mmosal.h"
#include "mmutils.h"
#include "mmwlan.h"
#include "mm_app_common.h"
#include "slip.h"

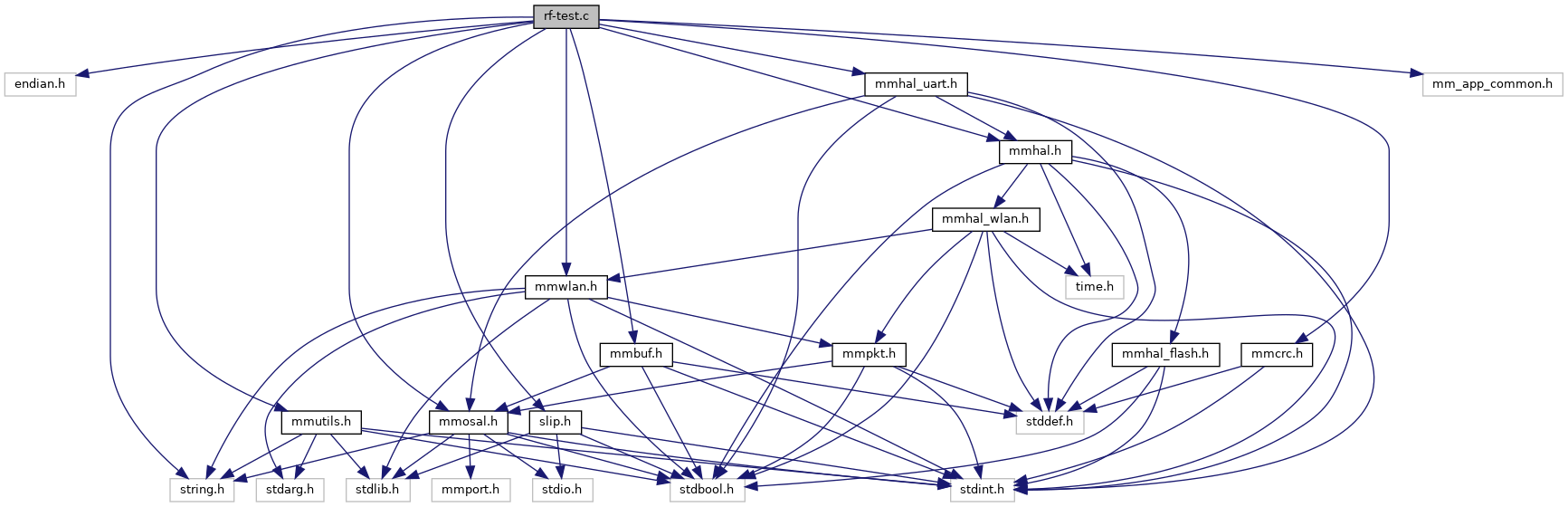

Include dependency graph for rf-test.c:

Go to the source code of this file.

Macros
#define	SEQ_NUM_LEN   (4)
	Length of the sequence number field appended to command/response packets. More...
#define	COMMAND_MAX_LEN   (252)
	Maximum possible length of a command that we may wish to receive. More...
#define	RESPONSE_MAX_LEN   (2048)
	Maximum possible length of a response that we may wish to send. More...
#define	RESPONSE_HDR_LEN   (12)
	Length of a response header (excluding status field). More...

Functions
static int	slip_tx_handler (uint8_t c, void *arg)
	TX callback handler for SLIP. More...
static void	rf_test_handle_command (struct mmbuf *cmd_buf)
	Callback to handle reception of a command packet from the data-link HAL. More...
static void	uart_rx_handler (const uint8_t *data, size_t length, void *arg)
	Handler for UART HAL RX callback. More...
void	app_init (void)
	Main entry point to the application. More...

Variables
static uint8_t	slip_rx_buffer [SLIP_RX_BUFFER_SIZE]
	Buffer for SLIP processing on receive path. More...
static struct slip_rx_state	rx_slip_state
	State data for SLIP processing on receive path. More...

Macro Definition Documentation

COMMAND_MAX_LEN

#define COMMAND_MAX_LEN   (252)

Maximum possible length of a command that we may wish to receive.

Definition at line 34 of file rf-test.c.

RESPONSE_HDR_LEN

#define RESPONSE_HDR_LEN   (12)

Length of a response header (excluding status field).

Definition at line 38 of file rf-test.c.

RESPONSE_MAX_LEN

#define RESPONSE_MAX_LEN   (2048)

Maximum possible length of a response that we may wish to send.

Definition at line 36 of file rf-test.c.

SEQ_NUM_LEN

#define SEQ_NUM_LEN   (4)

Length of the sequence number field appended to command/response packets.

Definition at line 32 of file rf-test.c.

Function Documentation

app_init()

void app_init

(

void

)

Main entry point to the application.

This will be invoked in a thread once operating system and hardware initialization has completed. It may return, but it does not have to.

Definition at line 215 of file rf-test.c.

rf_test_handle_command()

static void rf_test_handle_command ( struct mmbuf *  cmd_buf )

static

Callback to handle reception of a command packet from the data-link HAL.

Parameters

cmd_buf

The received command.

Definition at line 60 of file rf-test.c.

slip_tx_handler()

static int slip_tx_handler ( uint8_t  c, void *  arg  )

static

TX callback handler for SLIP.

This is invoked by SLIP to trigger transmission of a character.

Parameters

c	The character to transmit
arg	Opaque argument (ignored in this case).

Returns

0 on success, otherwise an error code.

Definition at line 48 of file rf-test.c.

uart_rx_handler()

static void uart_rx_handler ( const uint8_t *  data, size_t  length, void *  arg  )

static

Handler for UART HAL RX callback.

Parameters

data	The received data.
length	Length of the received data.
arg	Opaque argument – the SLIP state in our case.

Definition at line 158 of file rf-test.c.

Variable Documentation

rx_slip_state

struct slip_rx_state rx_slip_state

static

Initial value:

=
    SLIP_RX_STATE_INIT(slip_rx_buffer, sizeof(slip_rx_buffer))

State data for SLIP processing on receive path.

Definition at line 208 of file rf-test.c.

slip_rx_buffer

uint8_t slip_rx_buffer[SLIP_RX_BUFFER_SIZE]

static

Buffer for SLIP processing on receive path.

Definition at line 206 of file rf-test.c.
